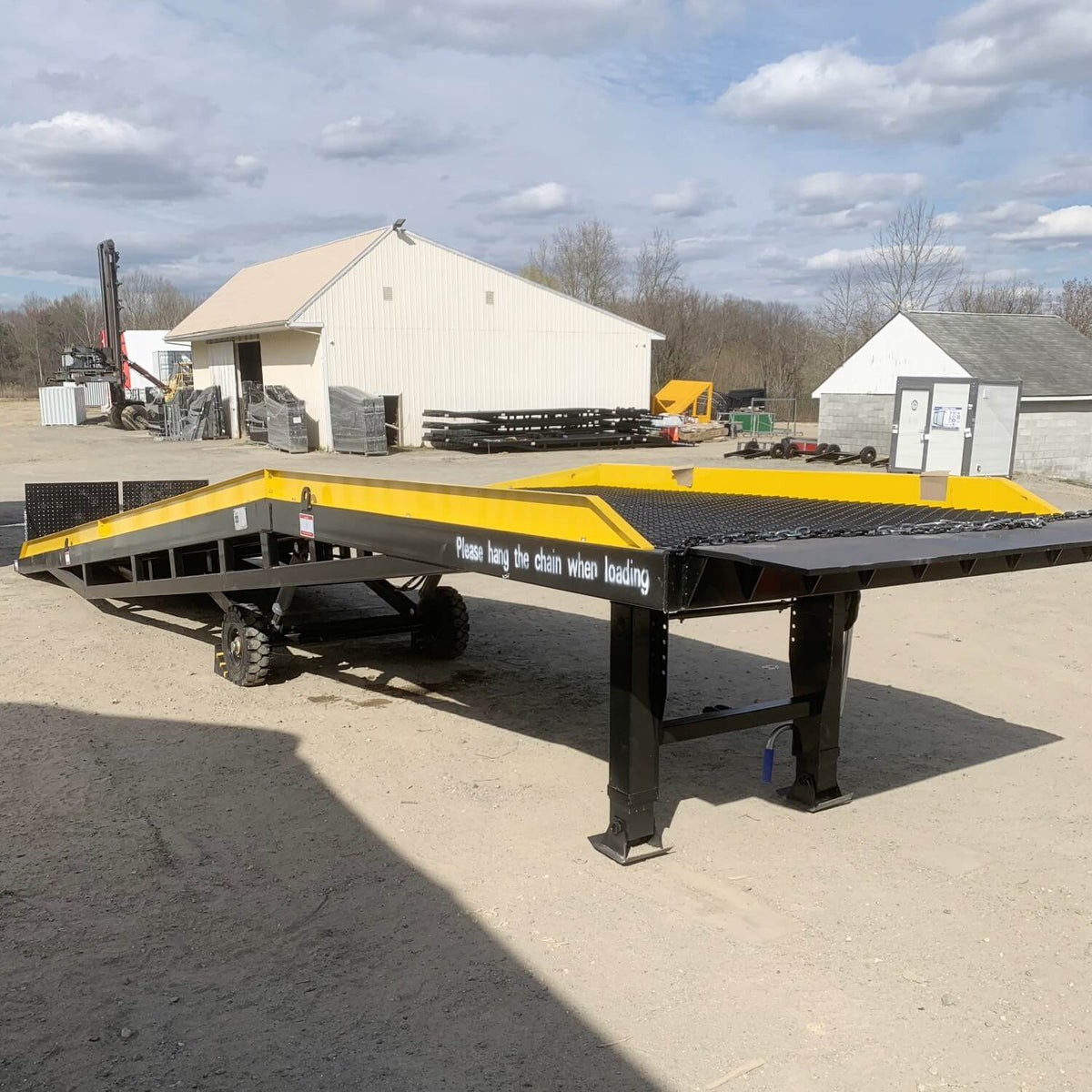

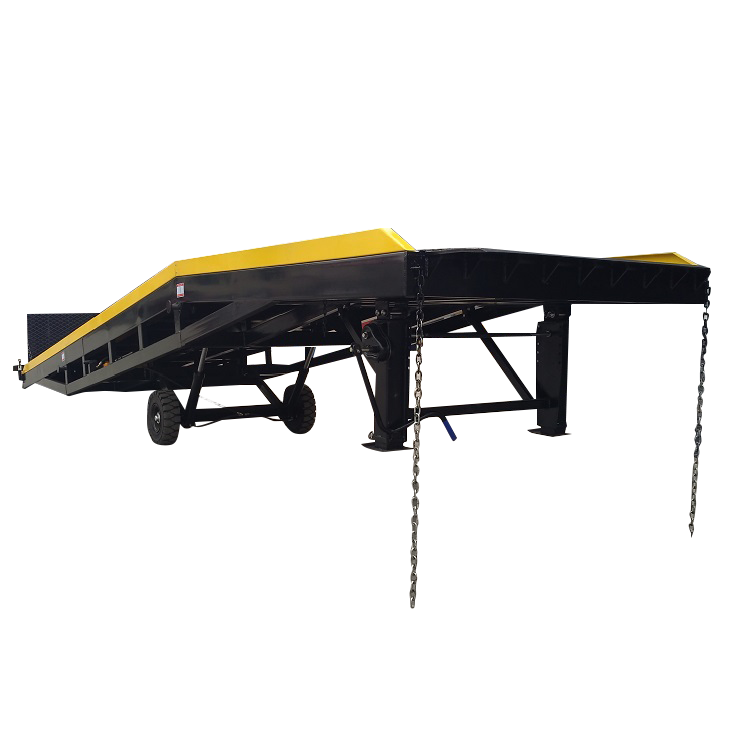

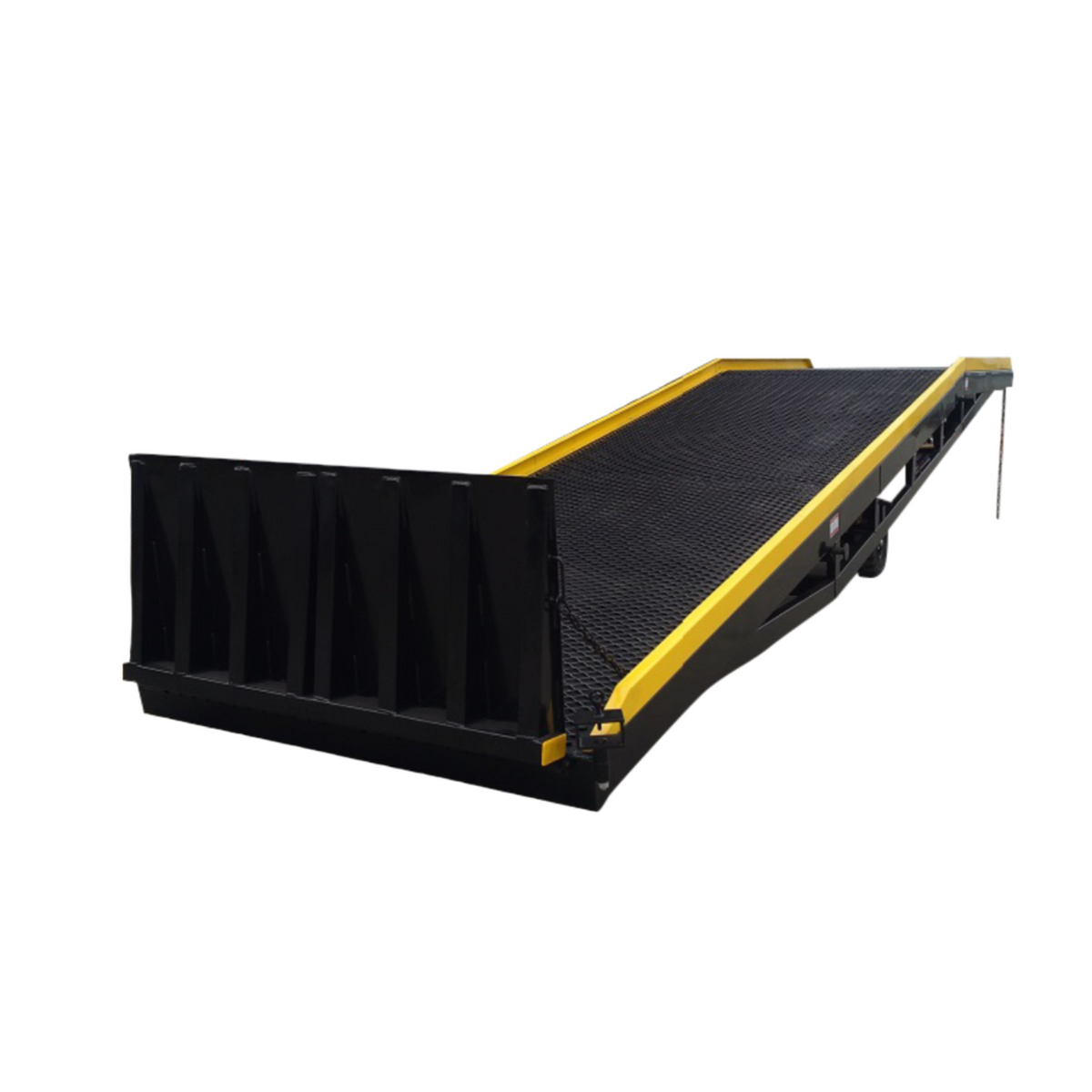

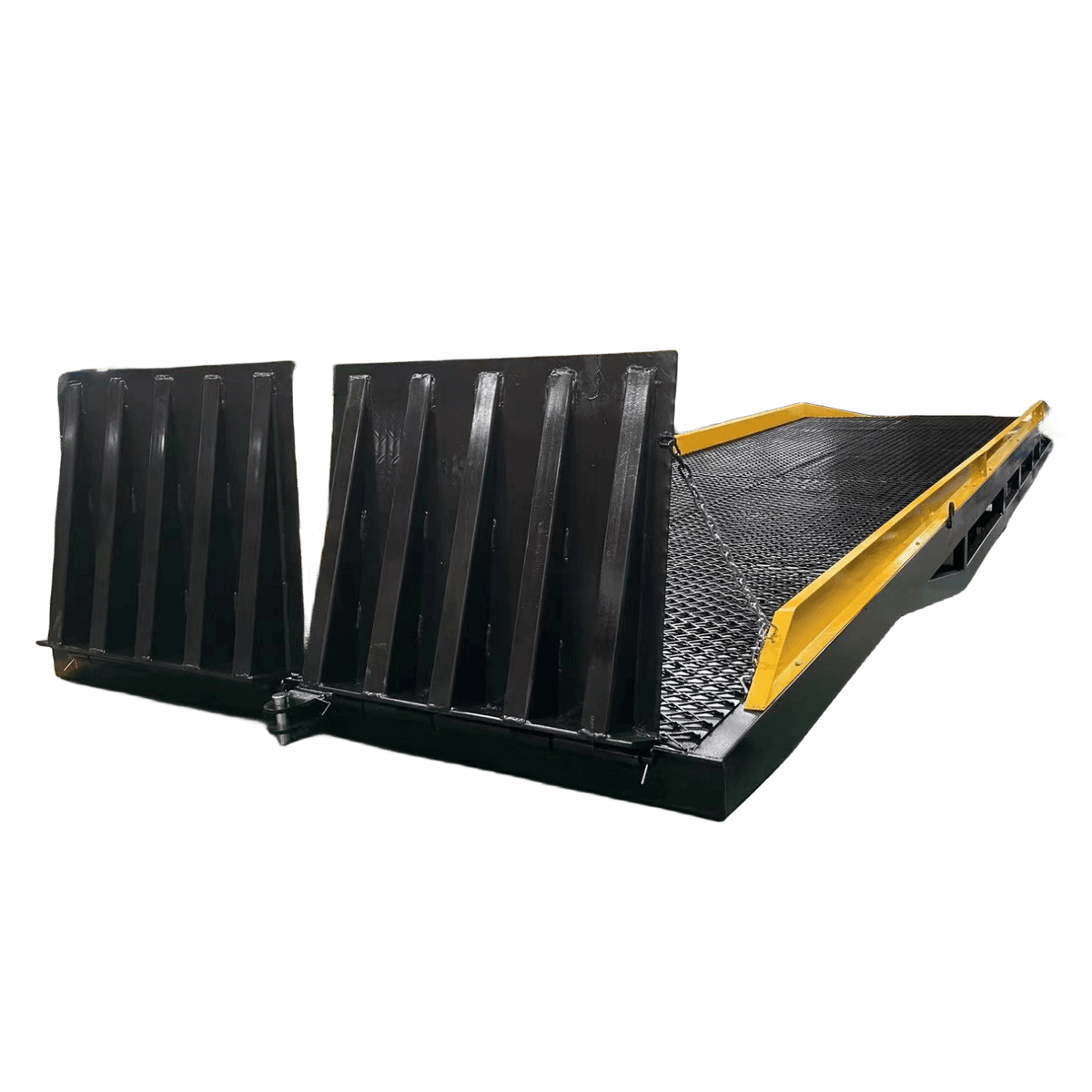

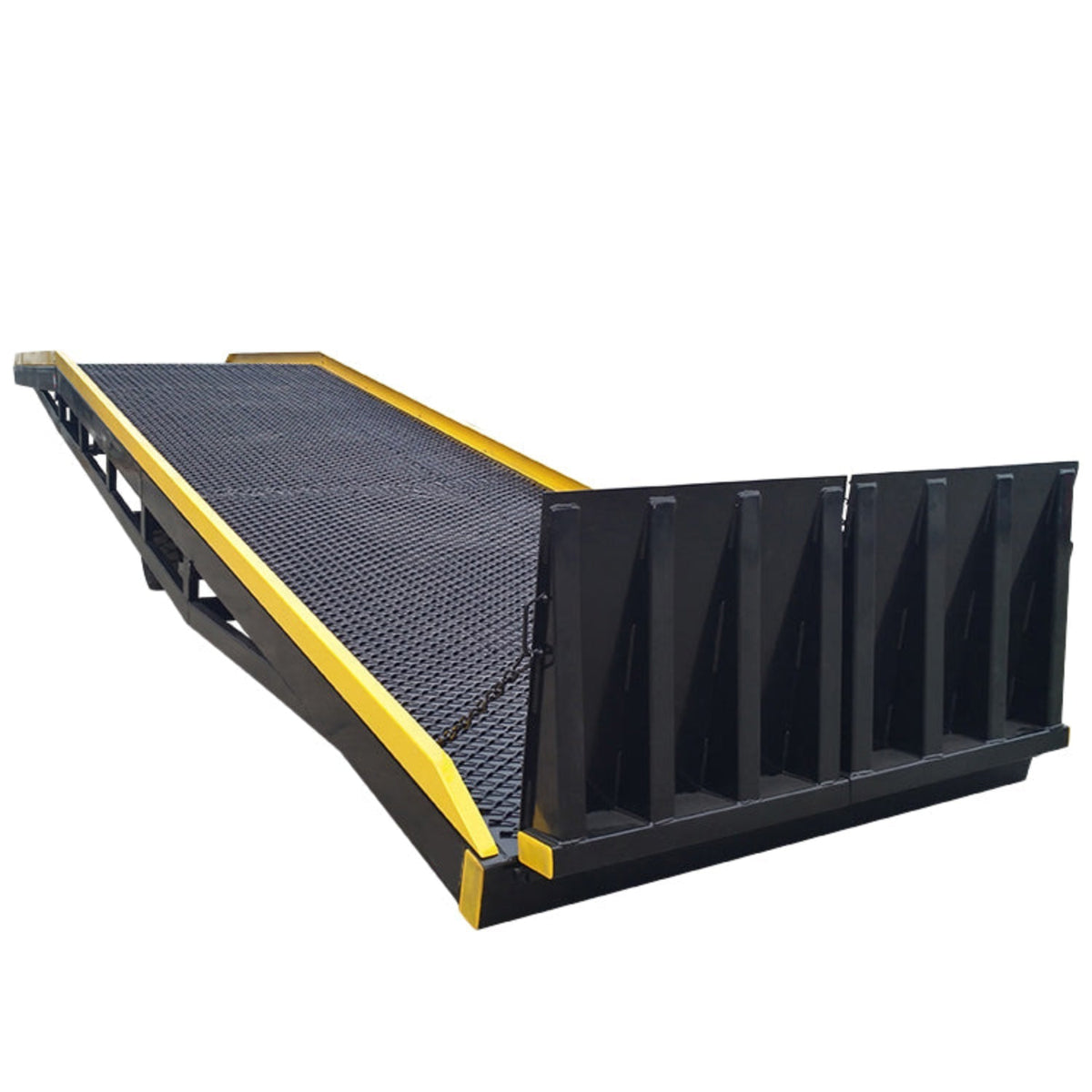

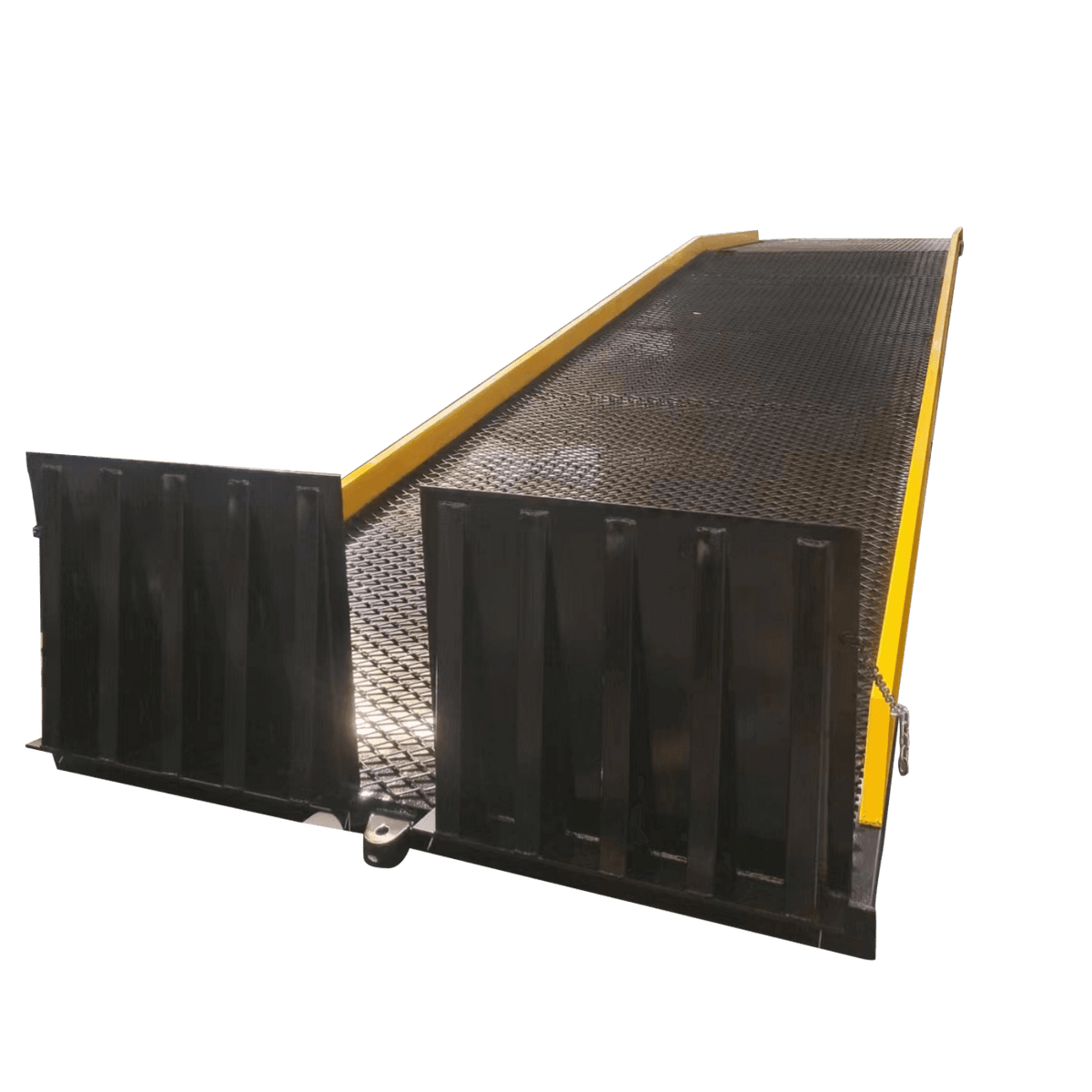

This steel yard ramp is designed for unloading trucks, trailers, or rail cars when dock space is not available. Made of durable steel, this patio ramp has a load capacity of 22,000 pounds and measures 37.1 feet long x 6.9 feet wide. Additional safety features include side rails on both sides to prevent the forklift from driving over the edge, and two safety chains to secure the ramp to the loading surface. These chains can be attached to the ICC bumper of your semi-truck trailer to prevent ramp kick-outs.

Manual

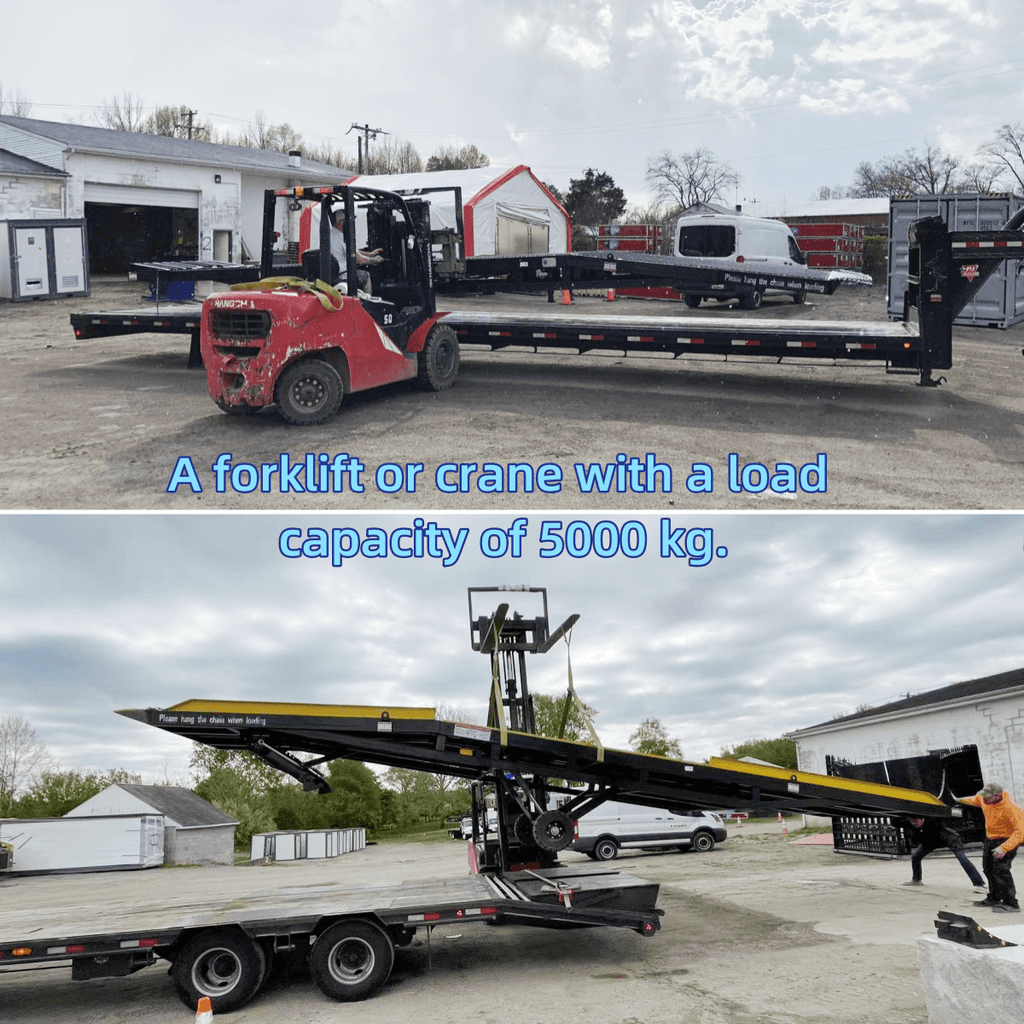

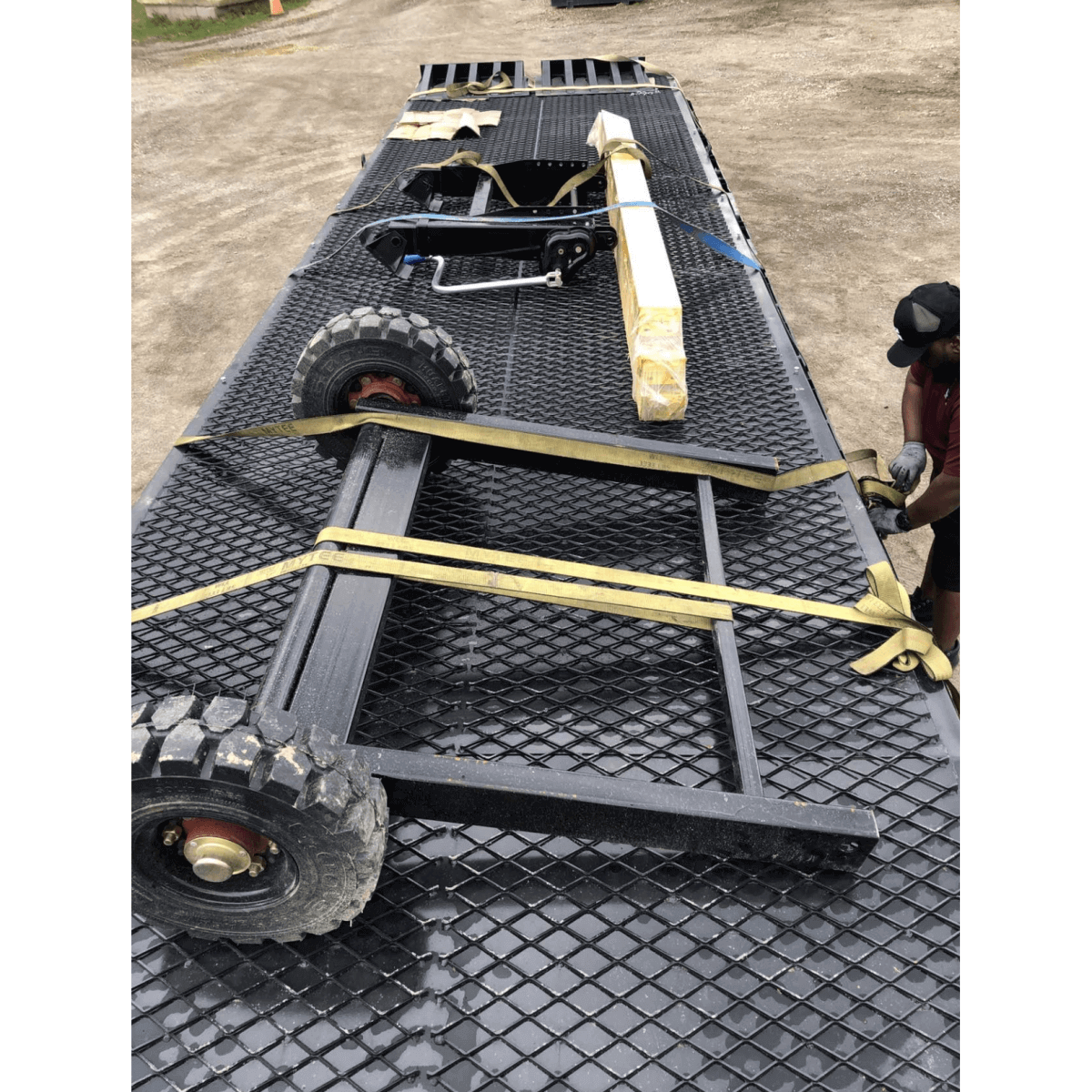

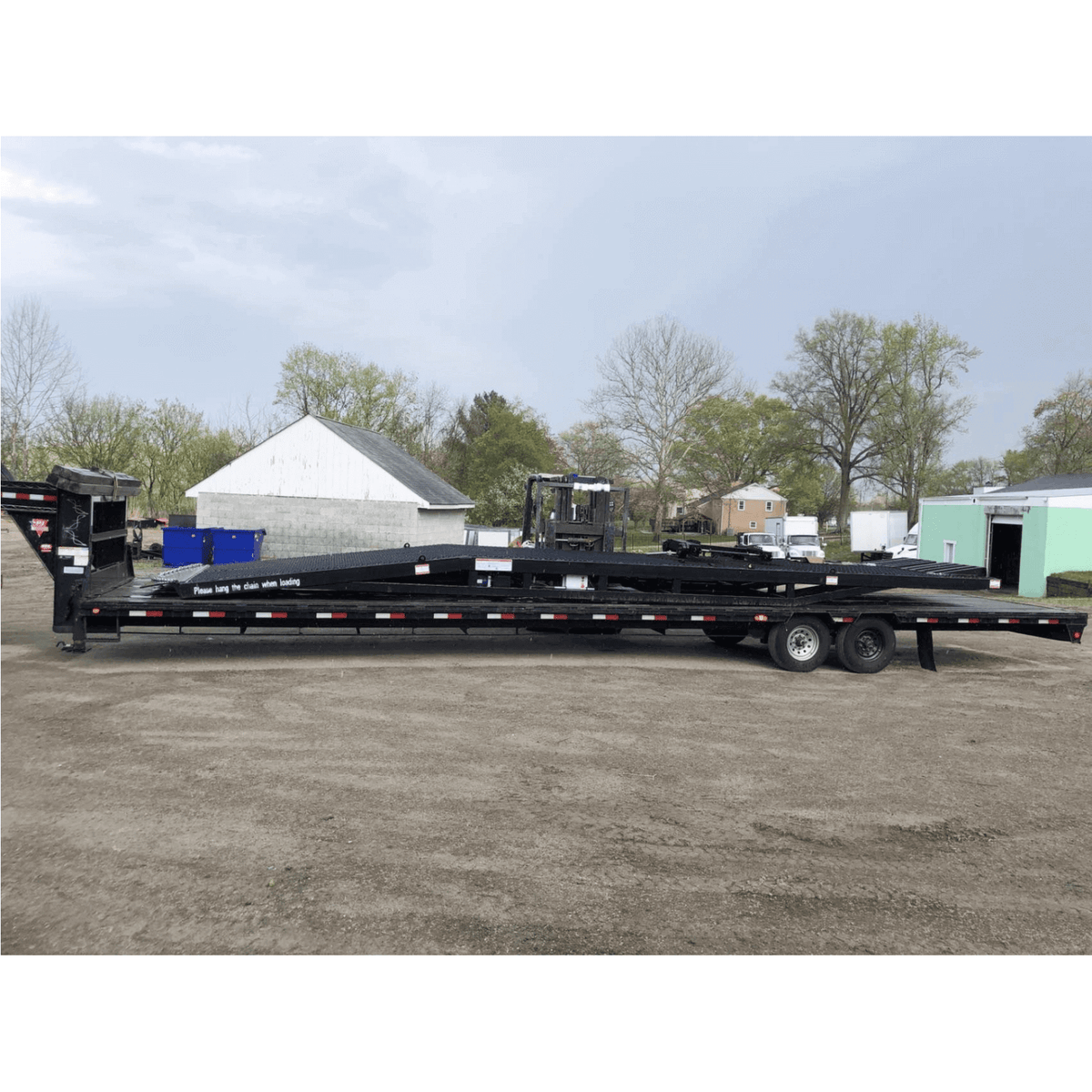

Necessary for unloading: A forklift or crane with a load capacity of 5000 kg.

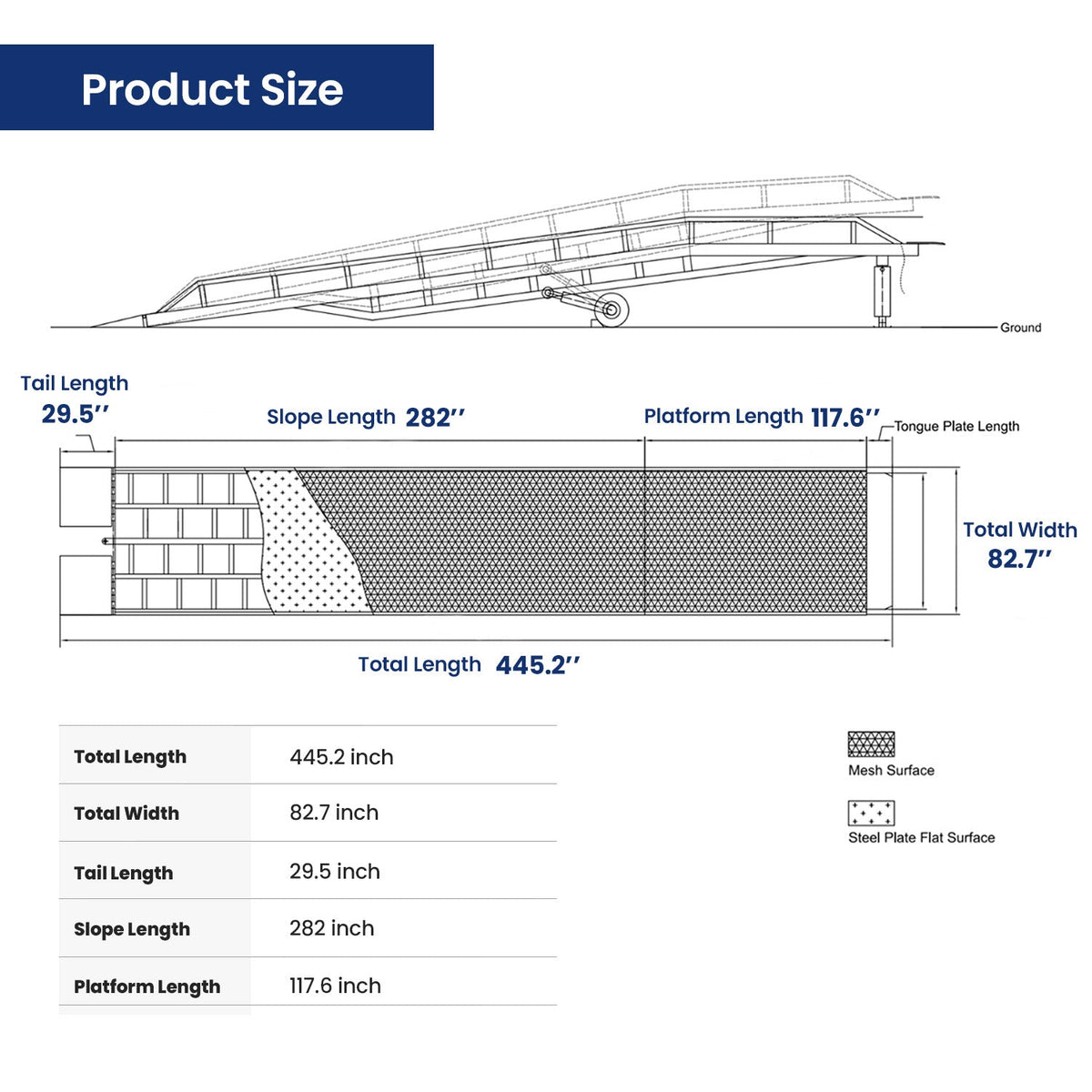

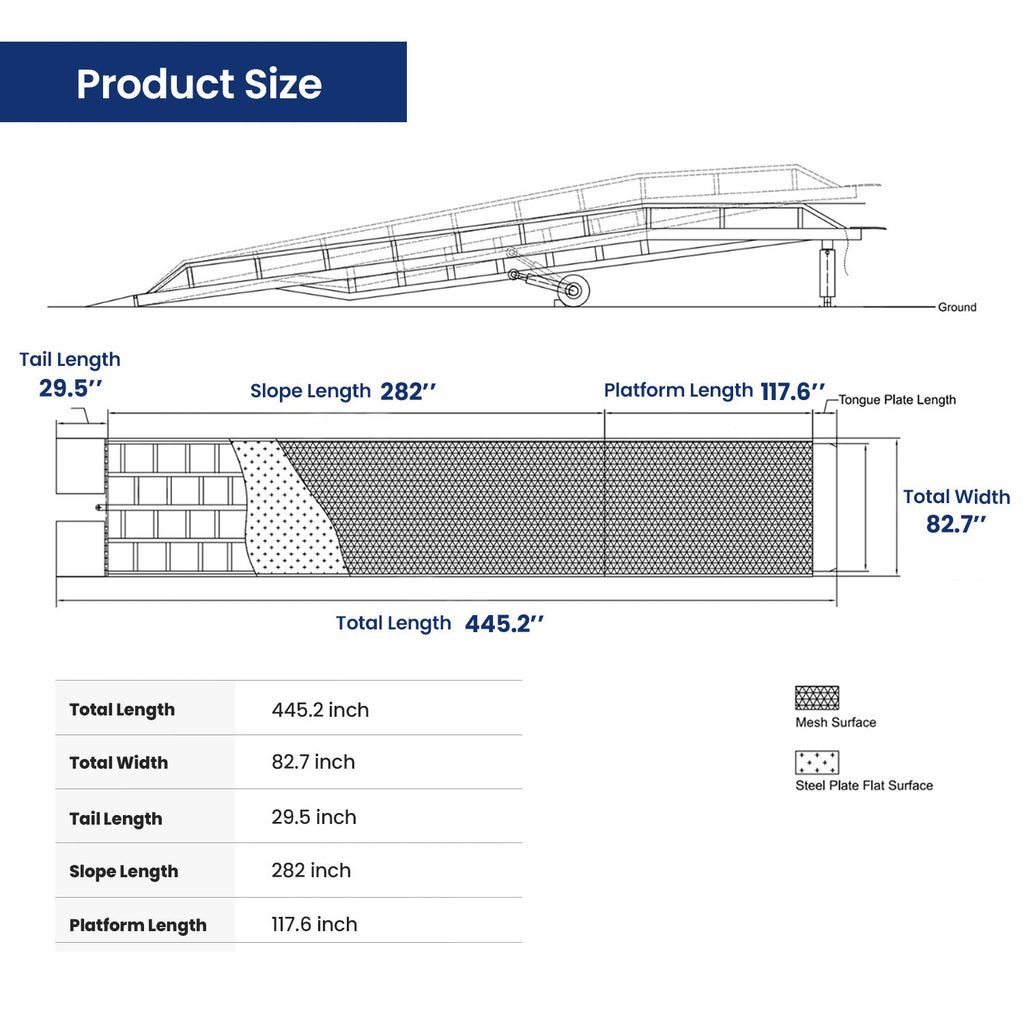

Specification

Material	Steel
Length	37.1'
Width	82.7"
Minimum Height	43.3"
Maximum Height	71"
Weight	5,732 lbs
Maximum Capacity	22,046 lbs
Slope Length	281.5"
Platform Length	118.1"
Tail Plate Length	29.5"
Tip Plate Length	15.7"
Steel Plate Thickness	4 mm
Steel Mesh Thickness	8 mm
Lip Thickness	16 mm
Power	AC(380V/220V/110V)
Main Beam	160x80x4mm rectangular pipe 5 main beams
Vice Beam	100x50x4mm

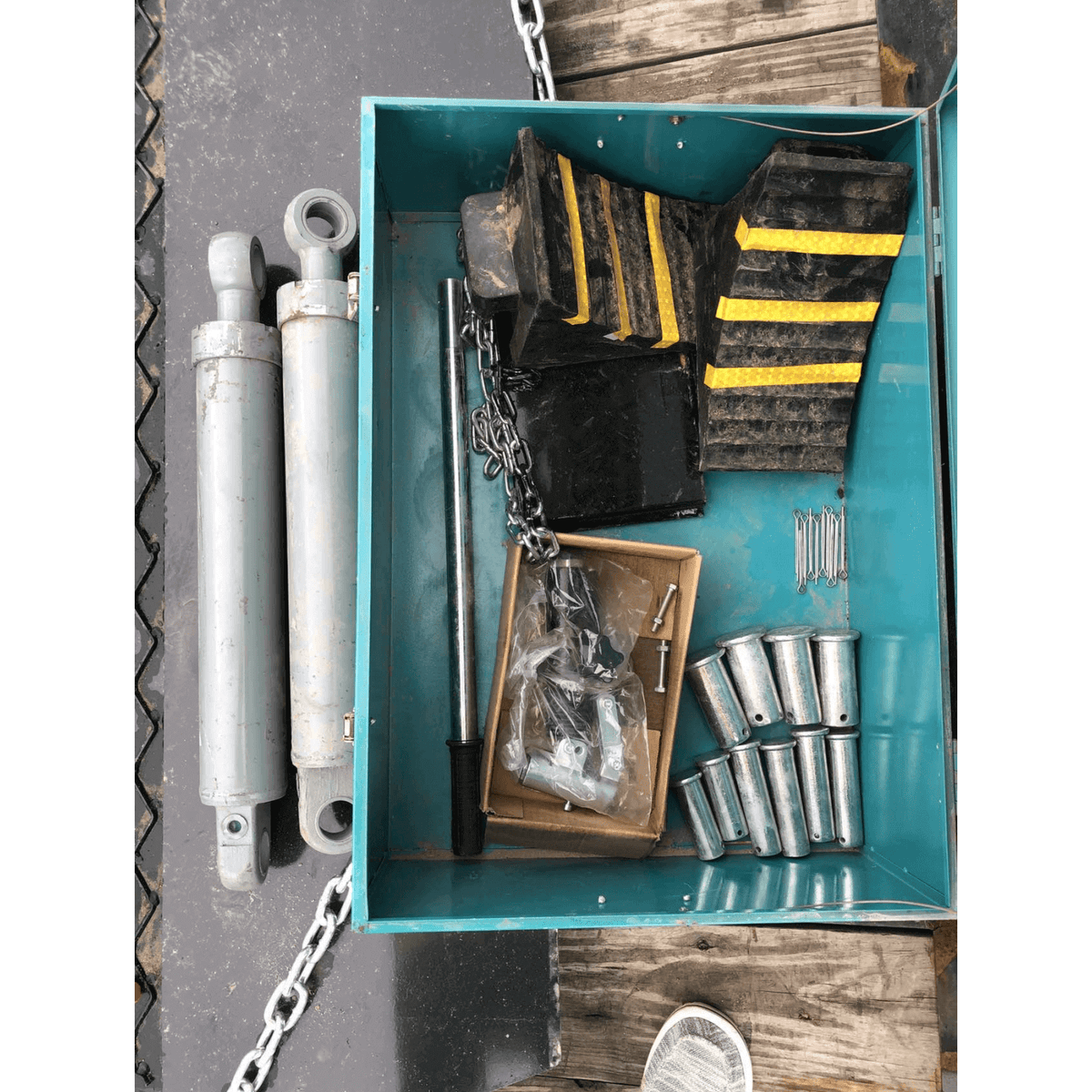

Lift Type	Dual Cylinder Hydraulic

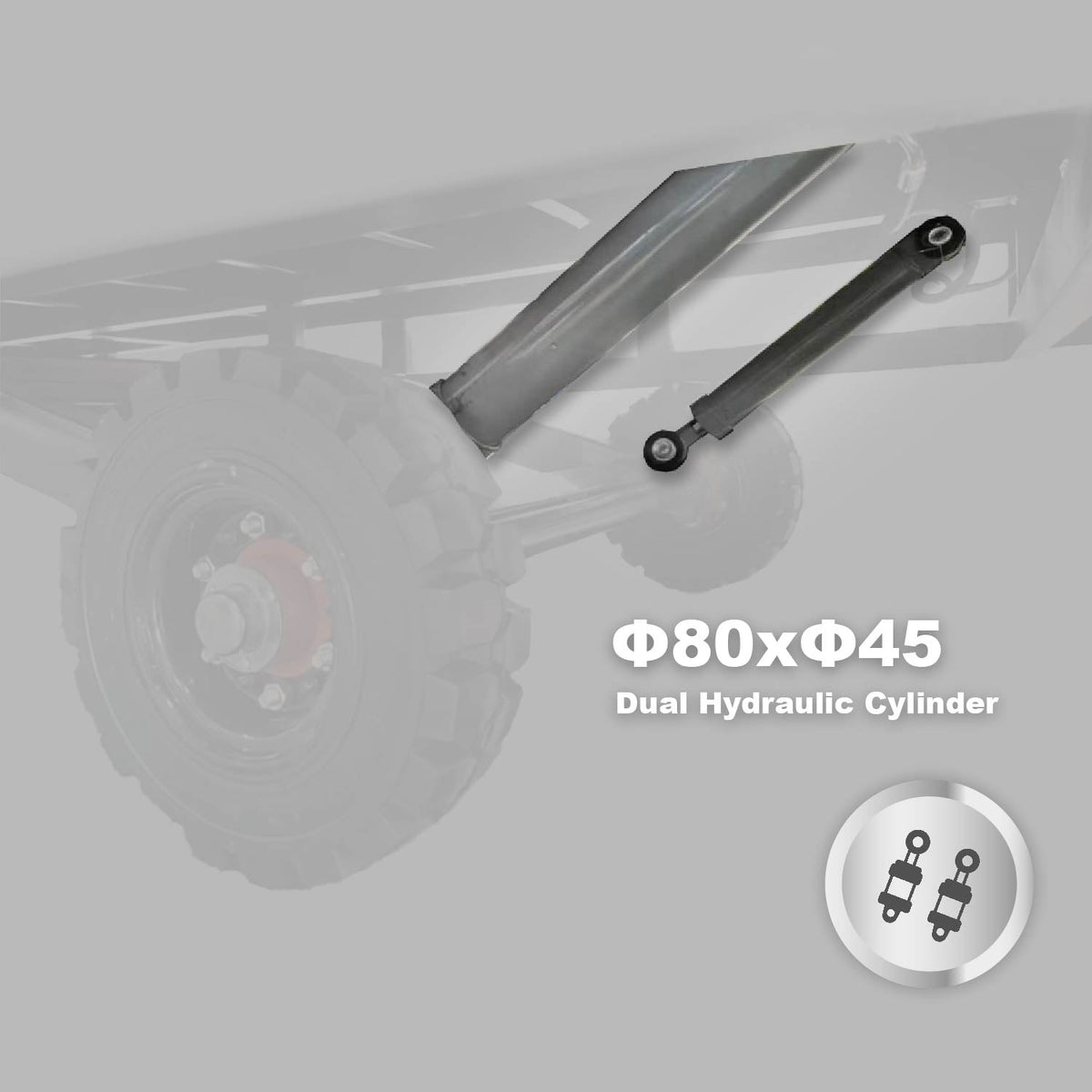

Hydraulic Cylinder	Φ80xΦ45（2 pcs）
Hydraulic Oil Pipe	32Pma
Solid Tire Size	600-9

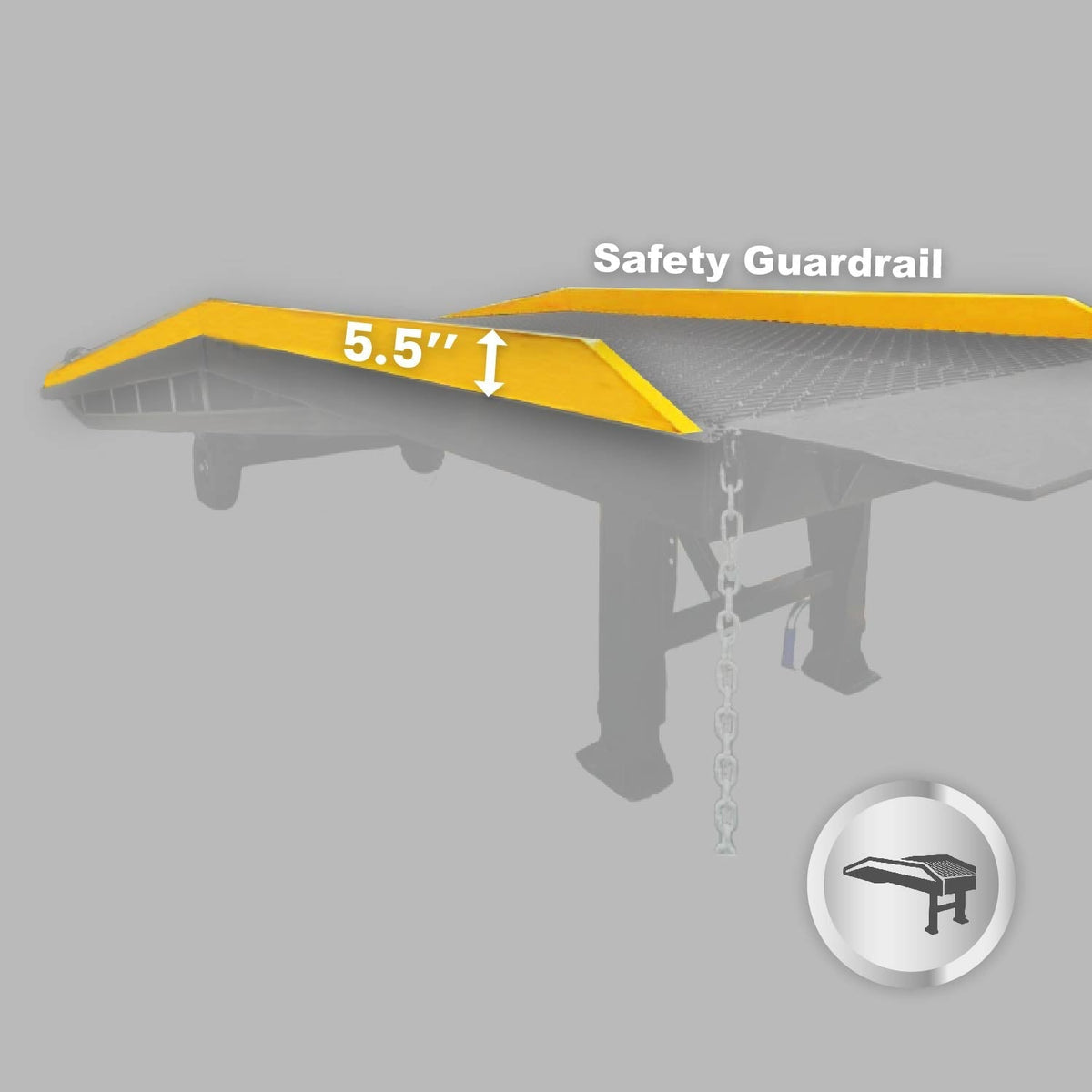

Guard Rail Height	5.5"

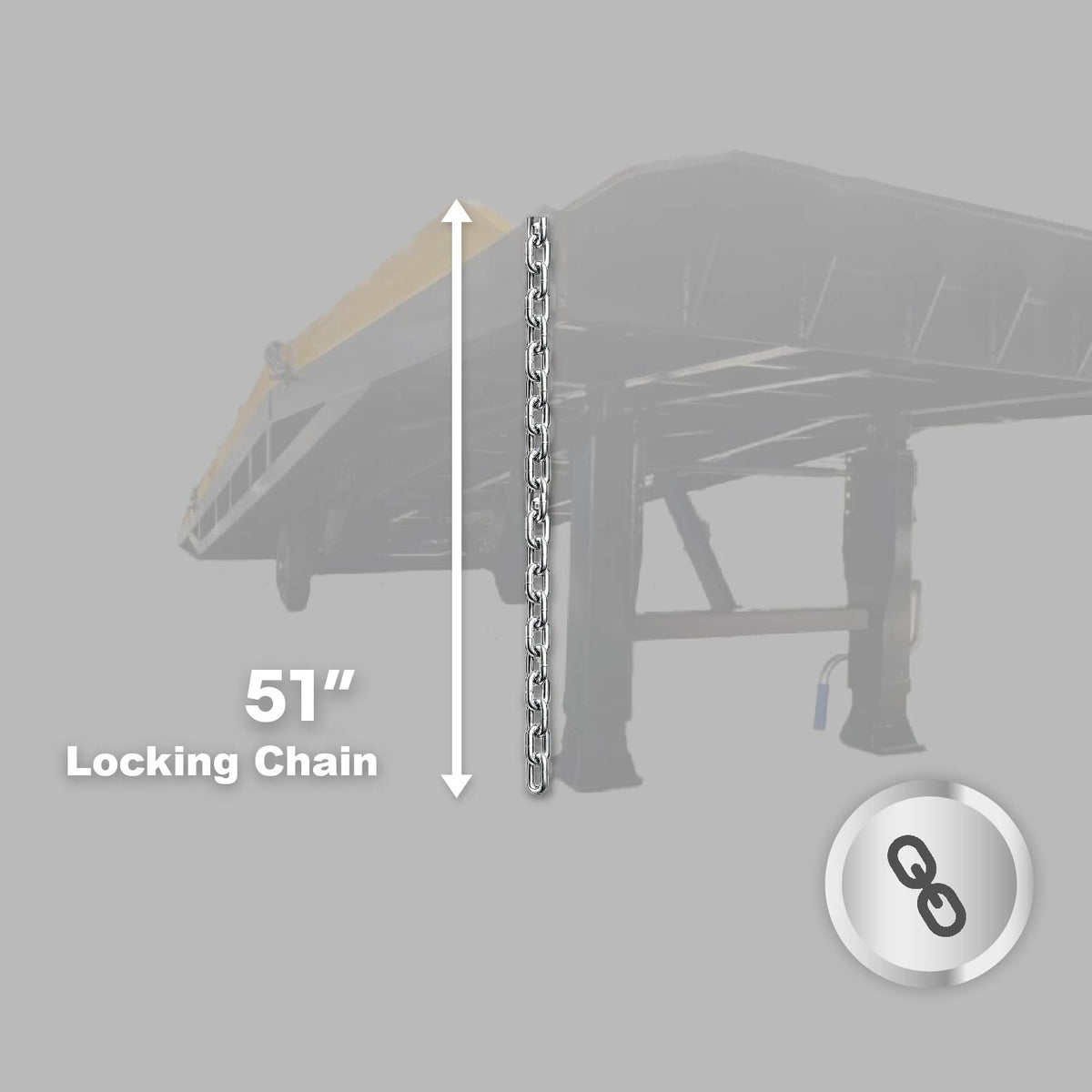

Safety Chains	51"

Feature

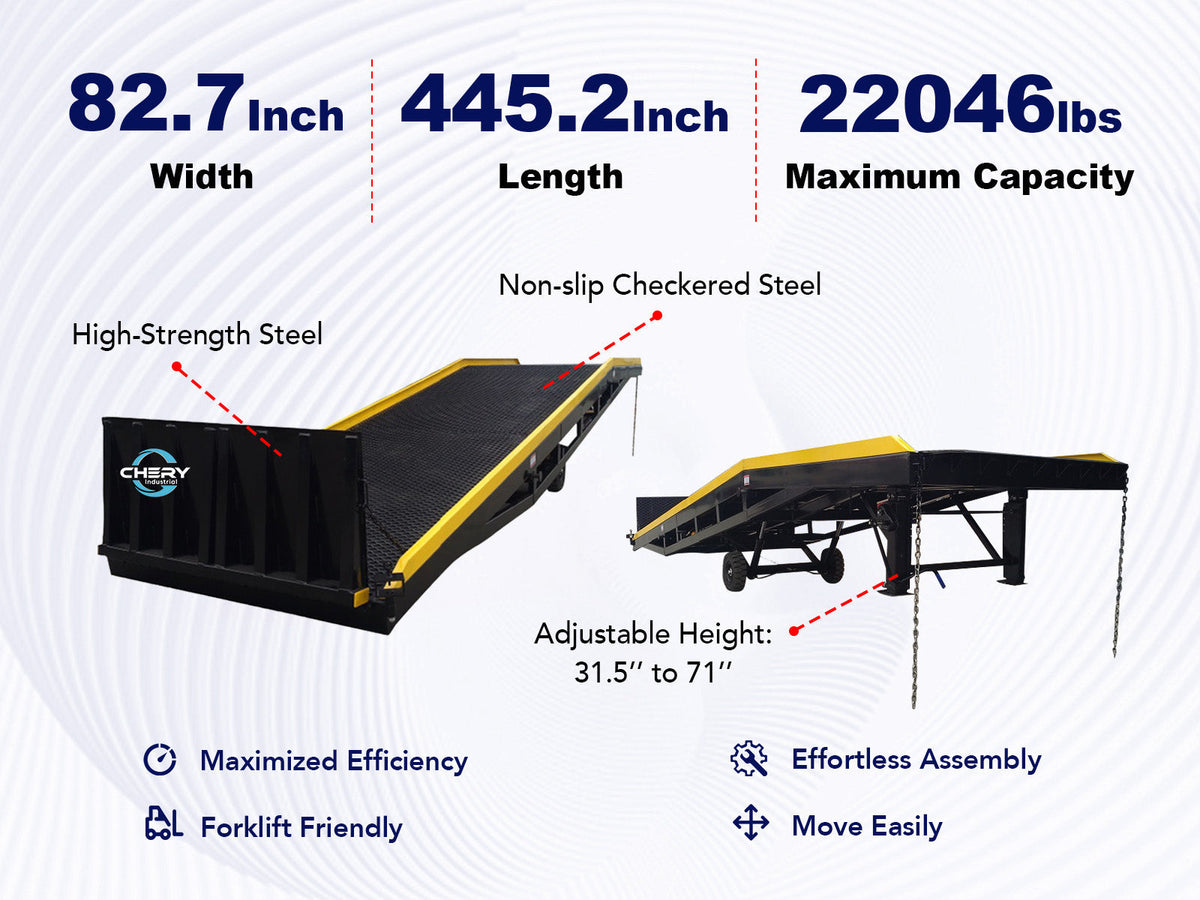

Height Adjustment: Enjoy seamless operation with height adjustability from 43.3" to 71" (110 cm - 180 cm), allowing this ramp to easily accommodate various truck and dock heights, maximizing efficiency.
Unrivaled Strength: Supporting a massive 22,046 lbs (10,000 kg), this ramp provides the robust support you need for heavy-duty material handling, reducing downtime and improving productivity.

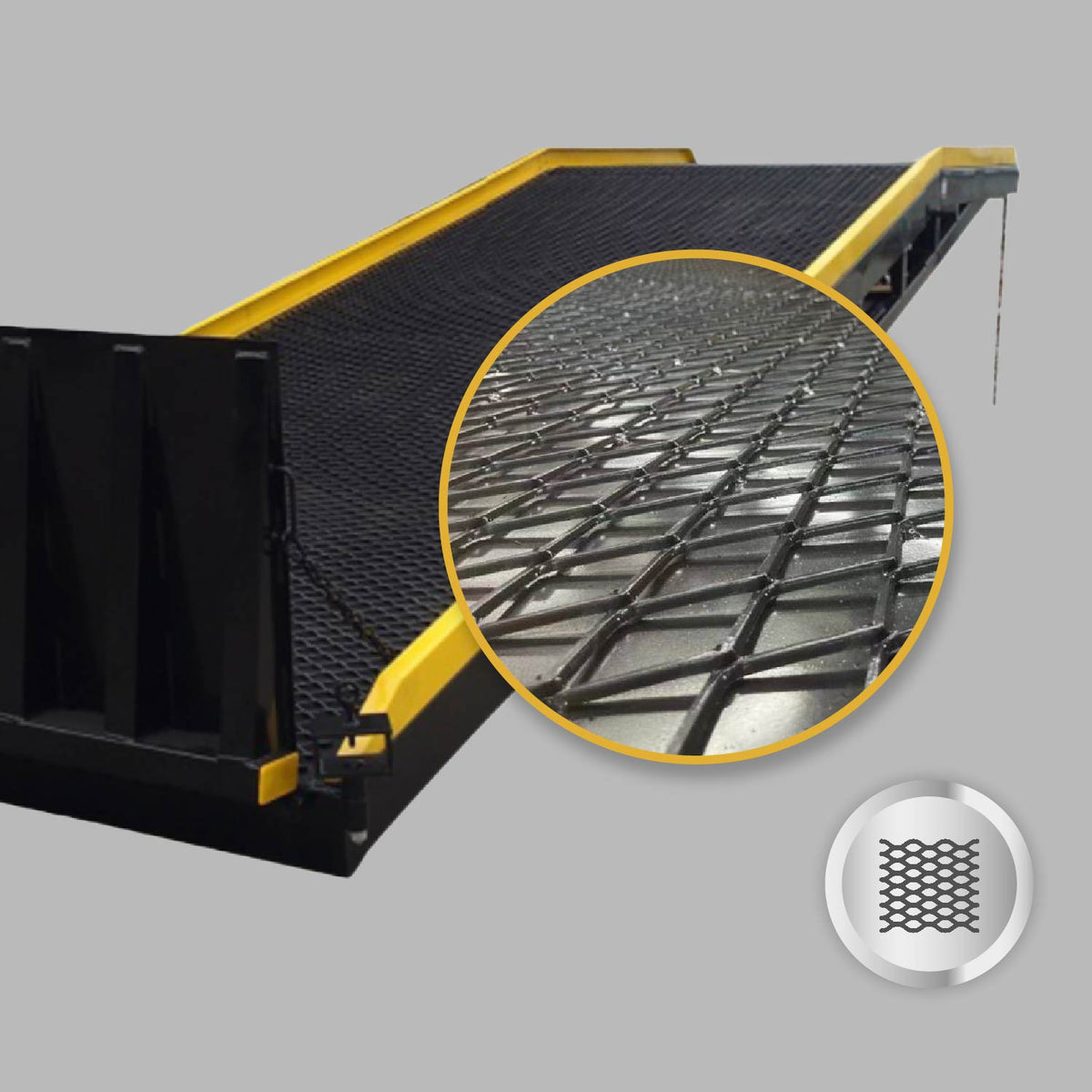

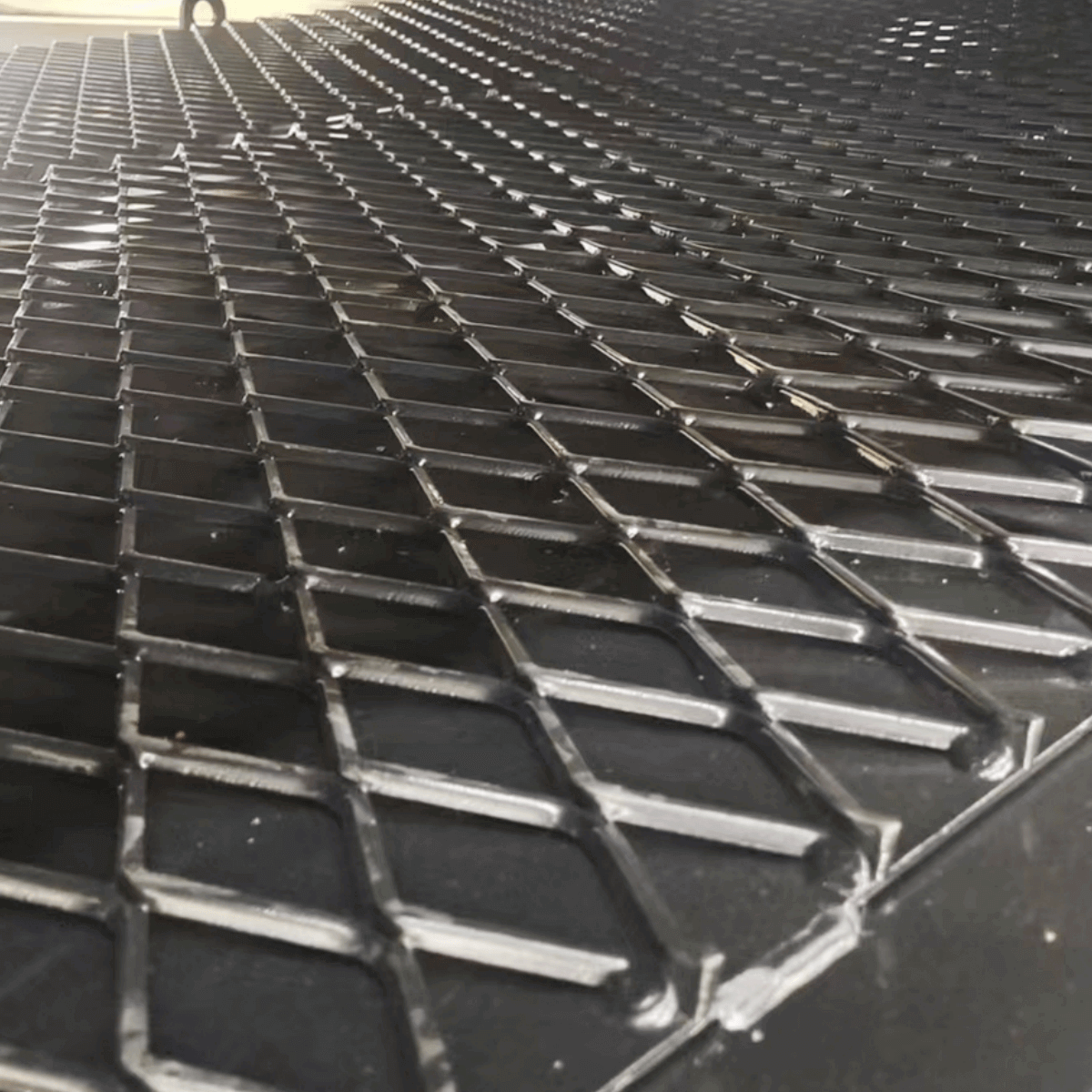

Secure Grip: The non-slip checkered steel surface ensures confident operation by providing superior traction, significantly reducing the risk of accidents and enhancing safety during loading and unloading.

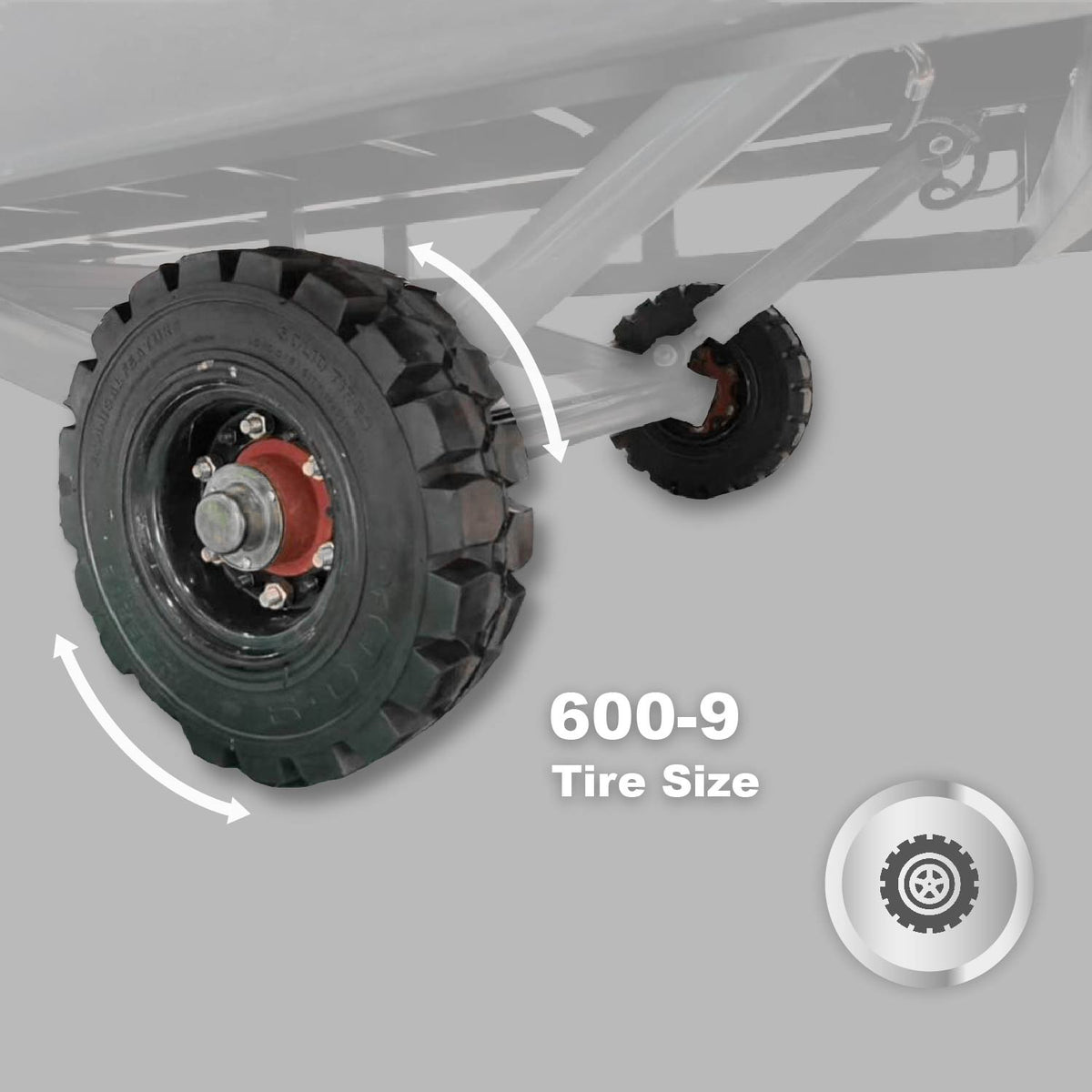

Enhanced Mobility: For easy positioning and maneuverability, the ramps are fitted with durable 600-9 solid tires. These tires are maintenance-free and provide stable support, allowing you to easily move the ramp wherever it’s needed within your facility.
