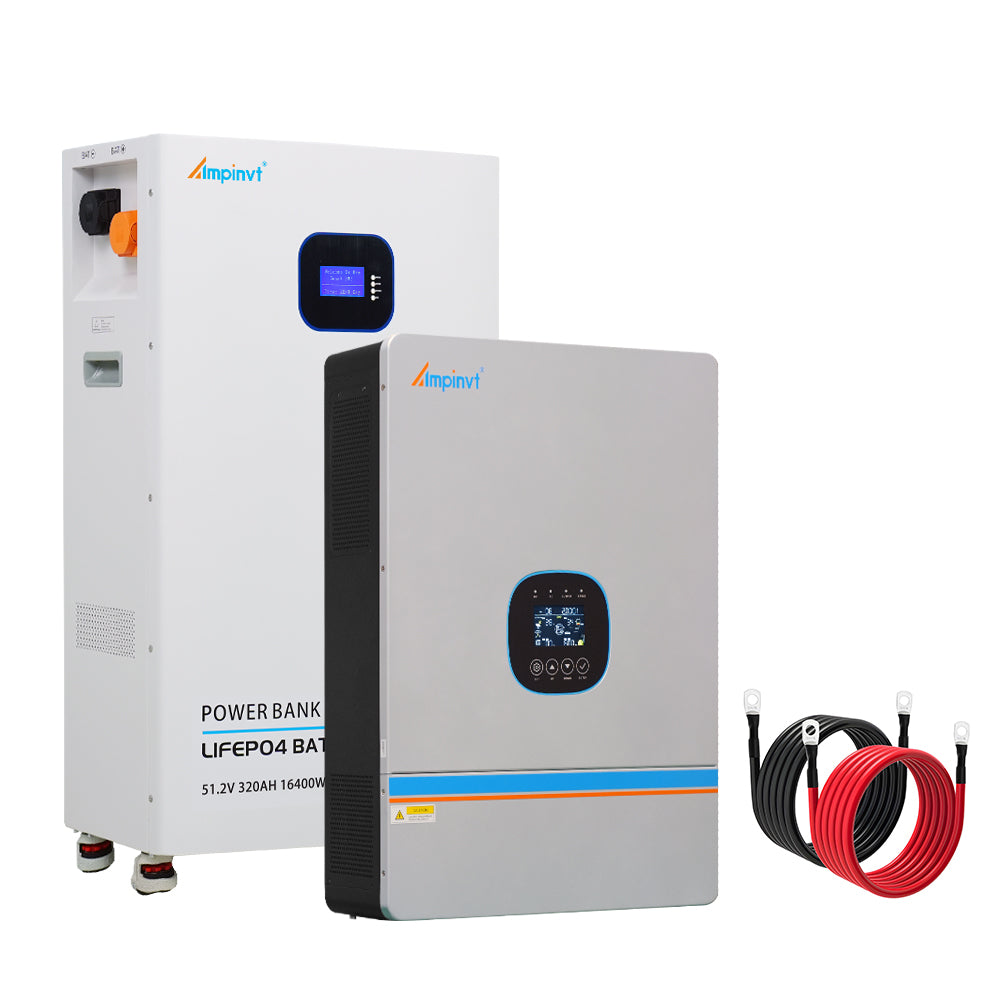

16.4KWH Off-Grid Energy Storage System 48V 320Ah LiFePO4 Battery + 10KW Solar Inverter

Off-Grid Solar Power & Storage Solution for Homes

Our off-grid solar system provides the key components needed to bring reliable solar power and energy storage to medium-sized off-grid homes or remote cabins. It includes a 16.4 kWh lithium battery and cable, allowing for quick setup. The 10,000W split-phase inverter/charger is capable of powering most 120V and 240V household appliances. With WiFi remote monitoring and automatic generator start, you can enjoy clean, quiet, and efficient off-grid energy whenever needed.

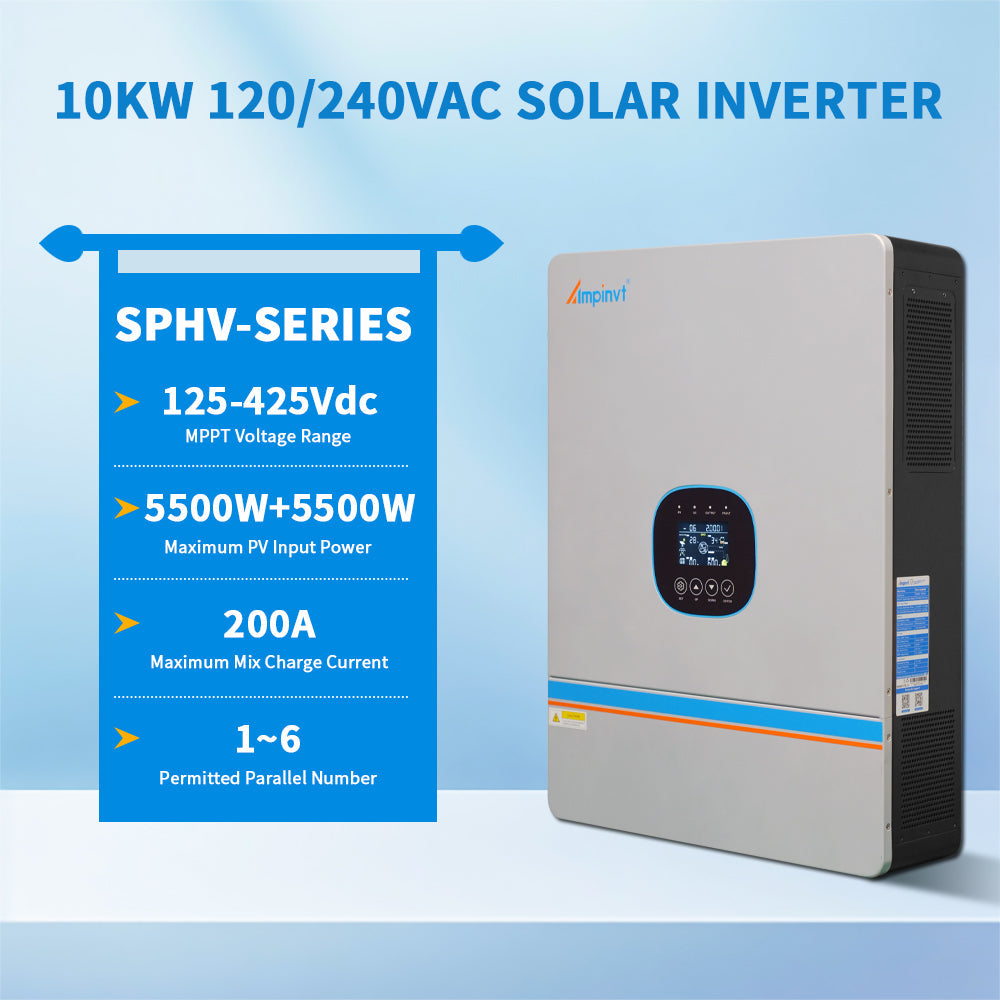

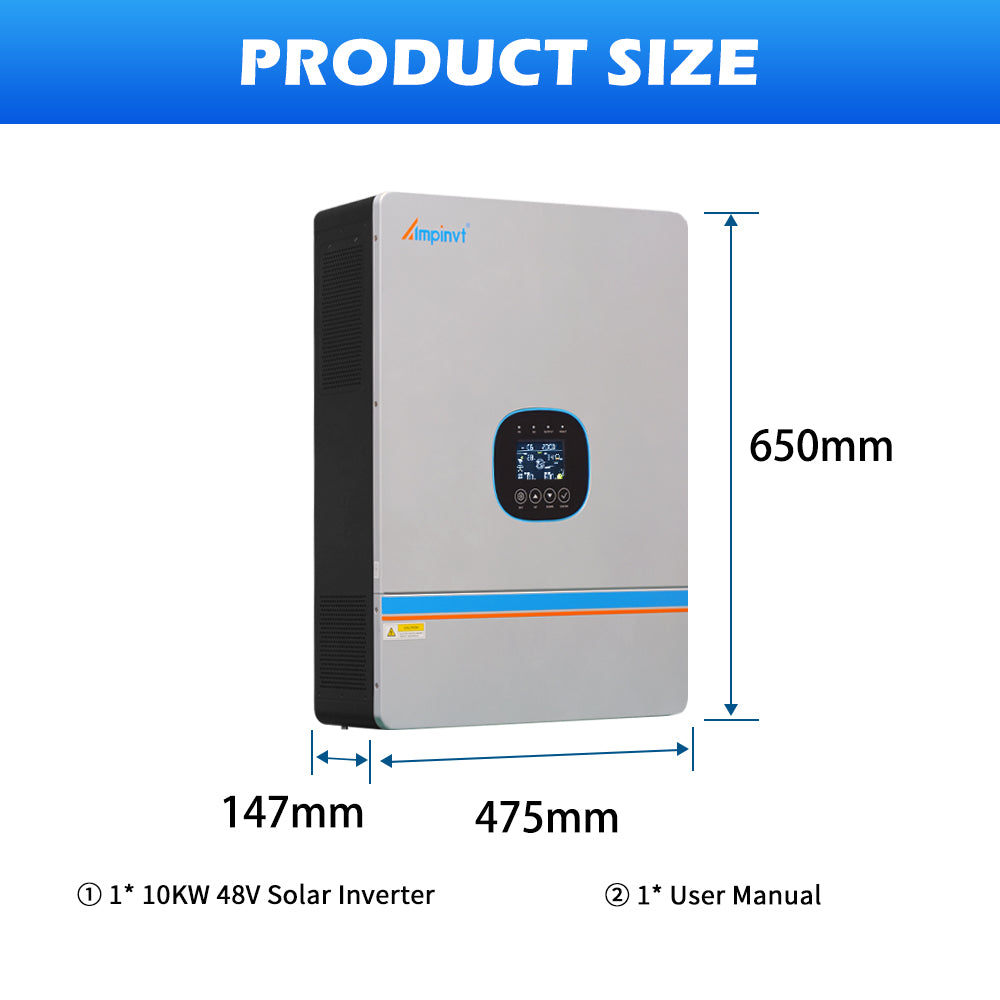

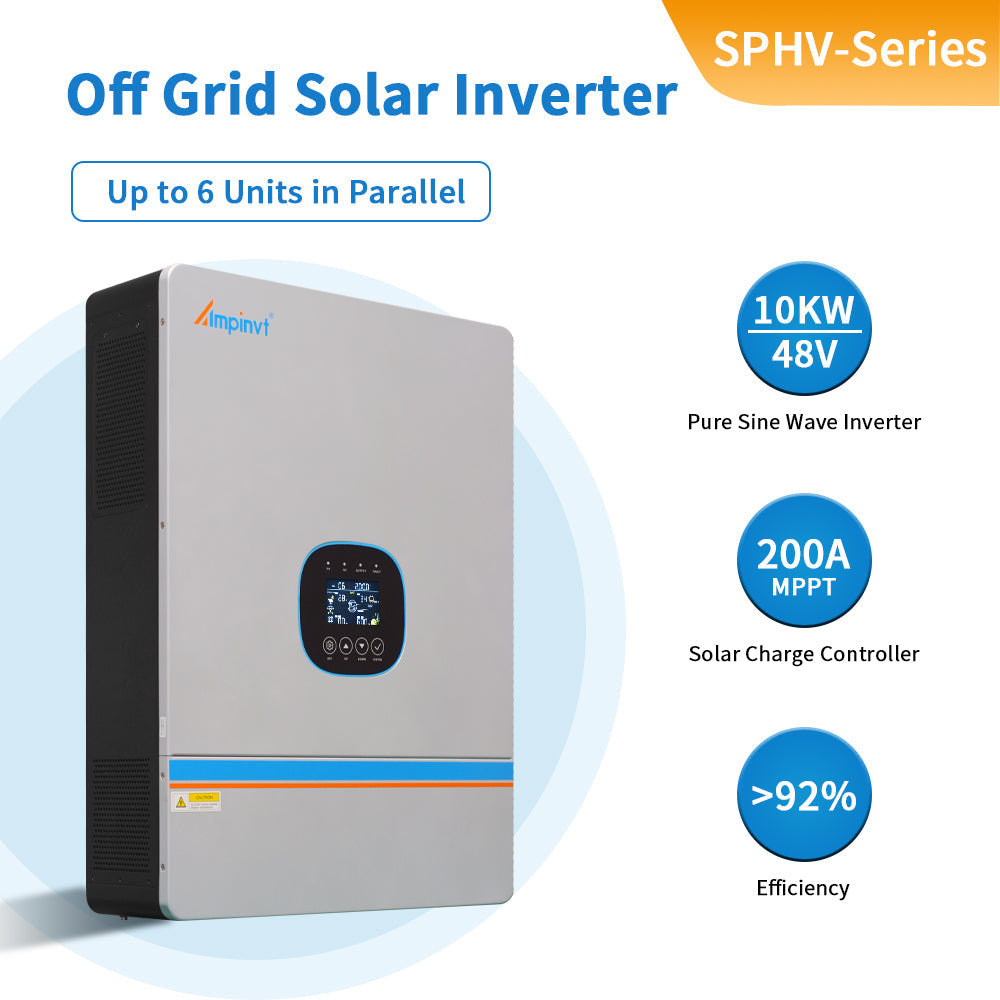

1 X SPHV Series 10KW 48VDC 120/240VAC Split Phase Solar Inverter

• 200A MPPT controller delivers up to 98% tracking efficiency. Max.PV Power：5500W, PV Input Voc:60-500V, Max PV Charging Current: 200A，with 40A AC charger
• 3 Work Modes: PV load priority mode / Inverter priority mode / PV priority mode.
• 4 Charging Modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
• Communication Ports (RS485/WIFI & USB): RS485/WIFI: Enables communication with monitoring hosts, lithium BMS, or mobile apps via optional modules for real-time data and parameter adjustment. USB: Connects to PC software for configuration; requires CH340T driver installation.
• Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection.

Note: Different types of loads have different starting impulse currents. Customers need to select the appropriate inverter model according to the actual equipment power, current, and load characteristics.

• What kind of the inverter is suitable for your appliances?
• Pls know that load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like laptop, TV, electric cooker ), please choose the inverter with continuous power higher than the appliance's rated power. And it is best to use 80% of the rated power. If you use microwaves, water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-10 times higher than your appliances.

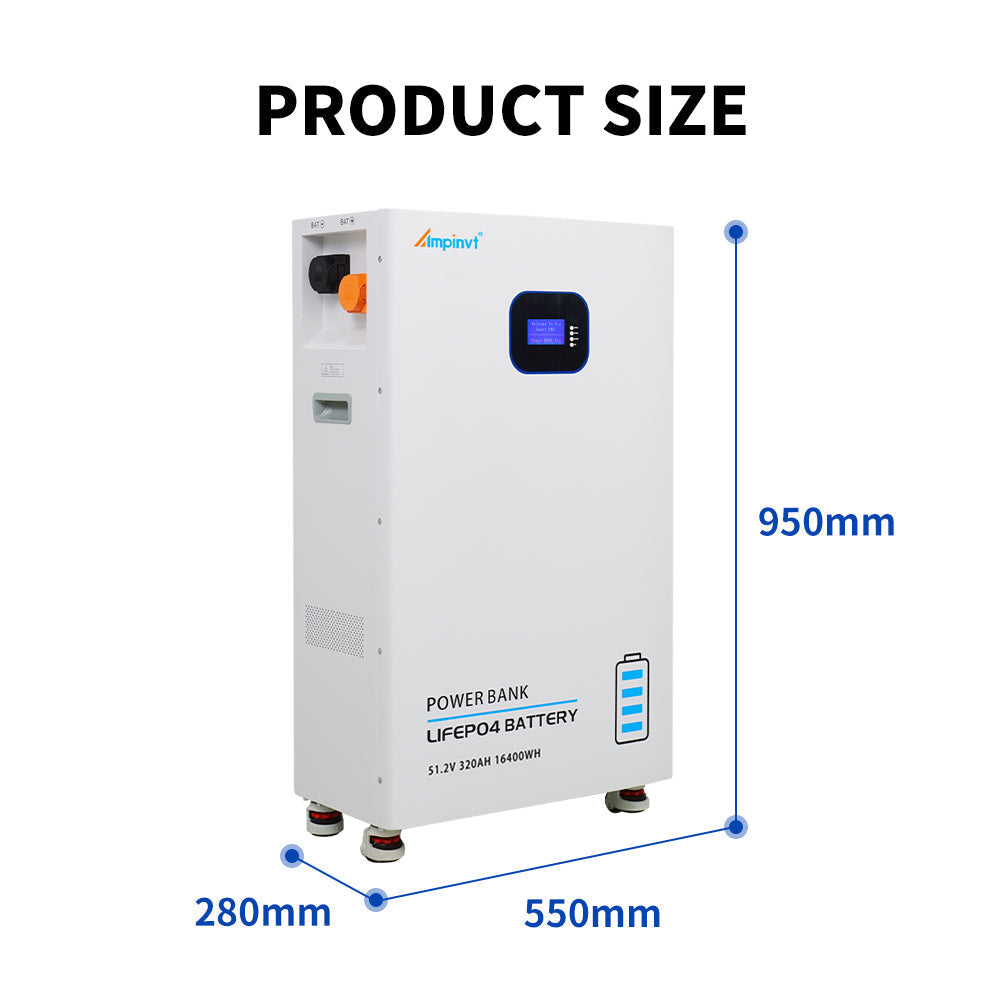

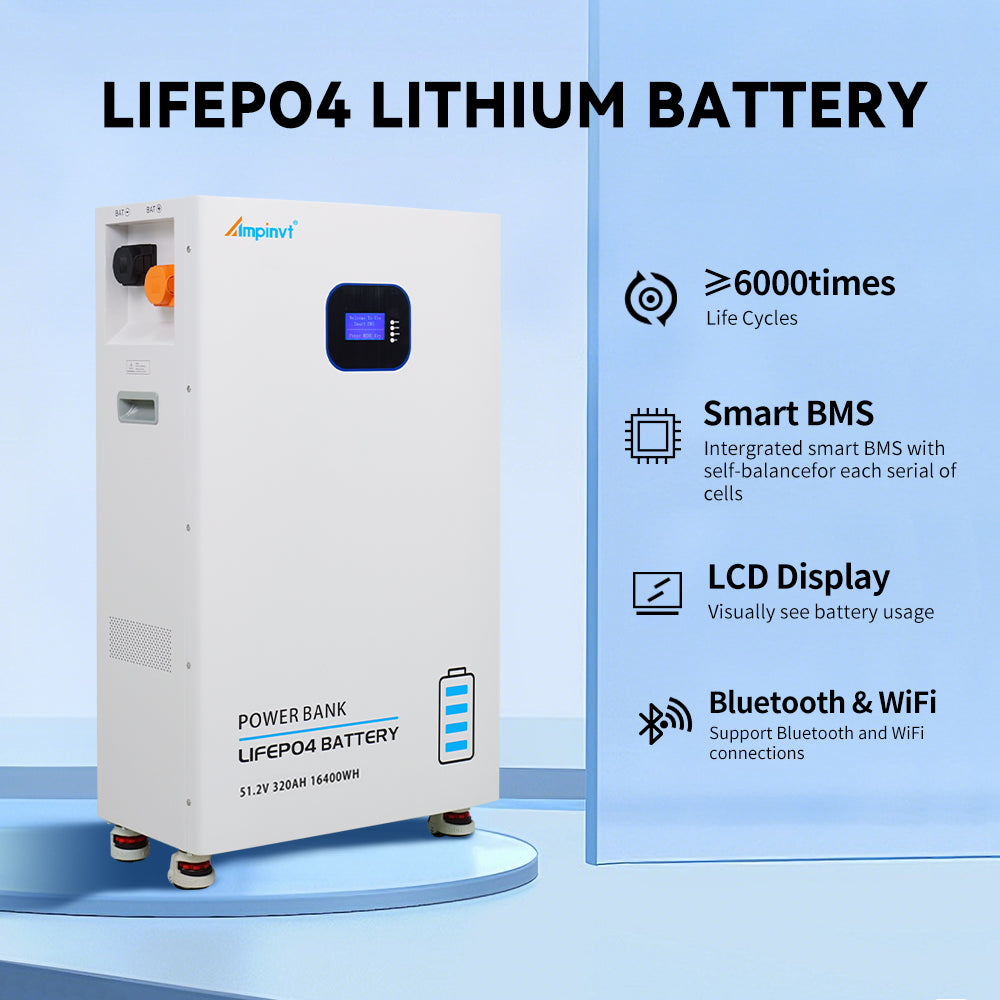

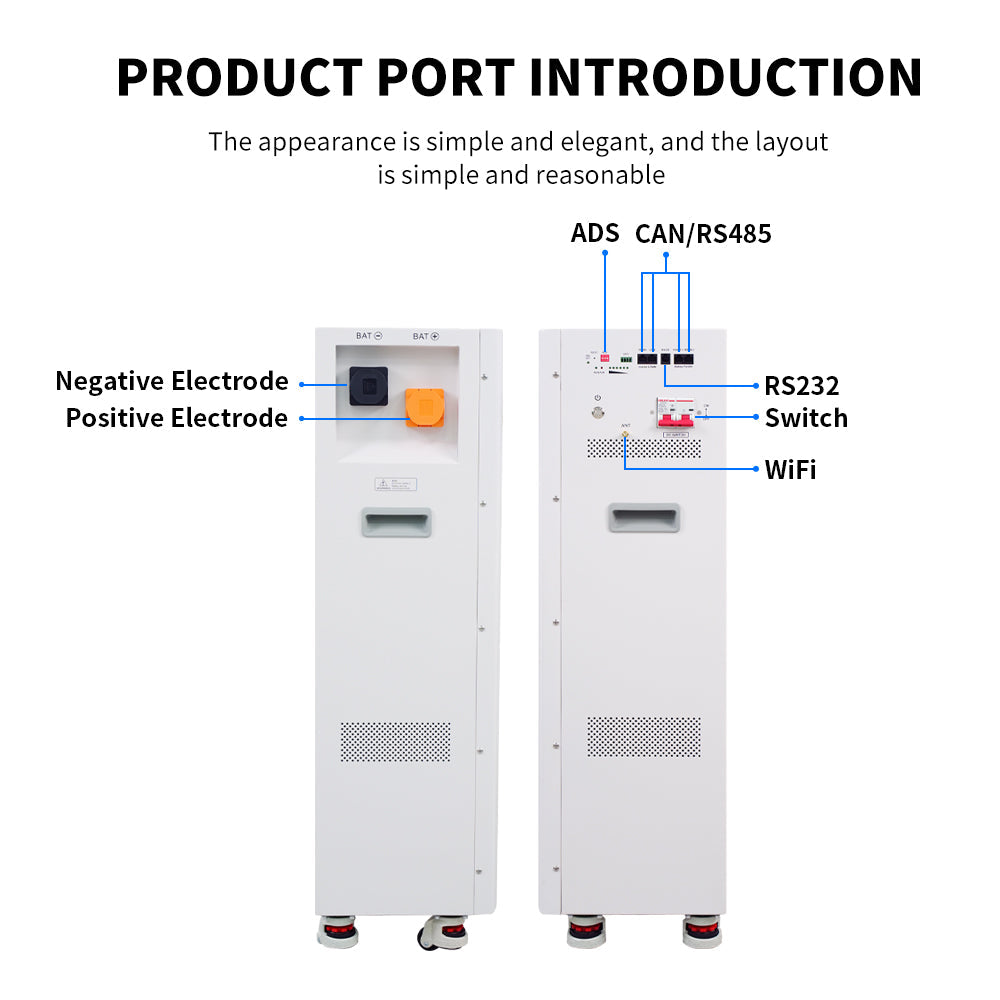

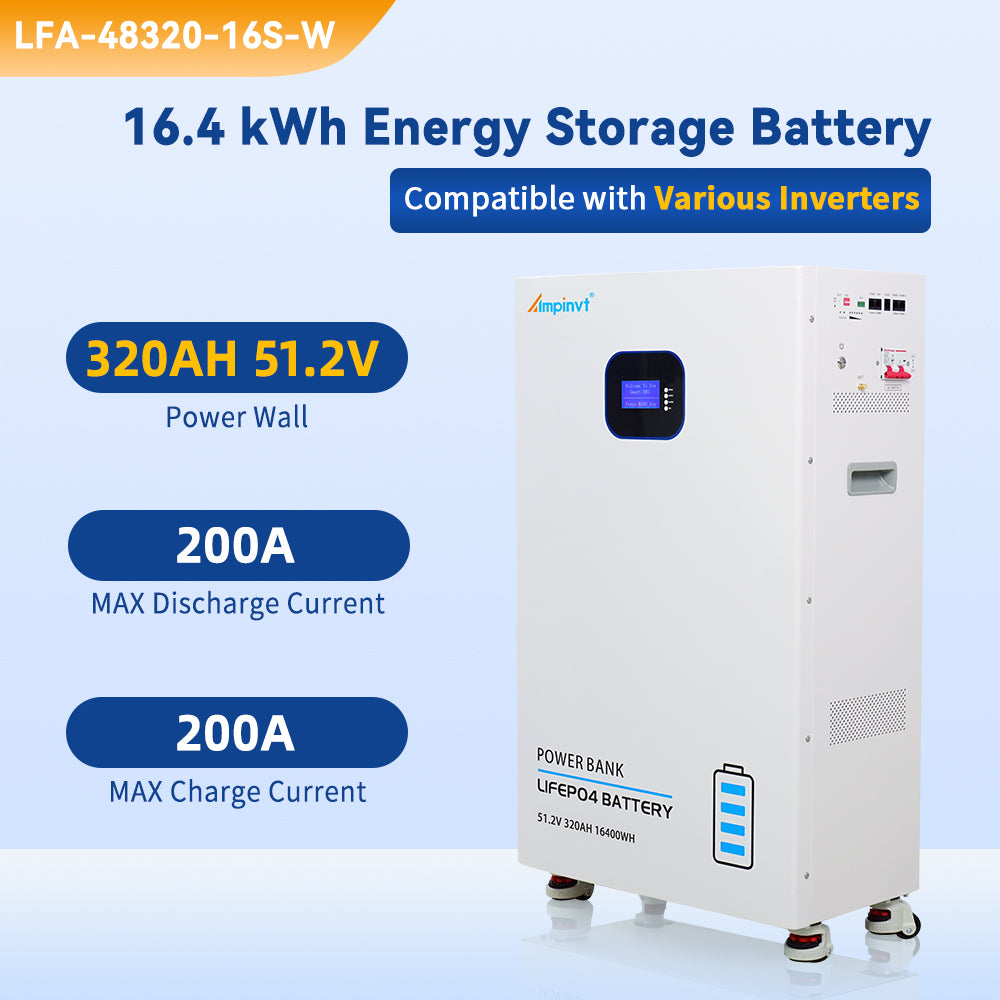

1 X 48V 320AH LifePO4 Battery

• The 51.2V 320AH LiFePO4 Battery is compact, designed for Wall-mounted, LCD, and cable/accessories ready for installation.
• Battery Management System can manage and monitor cells information including voltage, current and temperature, protects it from overcharge, deep discharge, overloading, overheating and short circuit, help to extend lifetime.
• Our LiFePO4 lithium batteries have an ultra-long lifespan of 5-10 years, providing reliable performance over thousands of charge and discharge cycles. This makes them an ideal choice for long-term investments, reducing the frequency of replacements and maintenance.
• LiFePO4 lithium batteries maintain consistent voltage output throughout the entire discharge cycle, ensuring reliable power delivery for various applications.
